Kingpin is our lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.
Bring It All
Our all-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.
Tuned Ride
A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.
OutFront Steering Geometry
Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.
Tidy does it

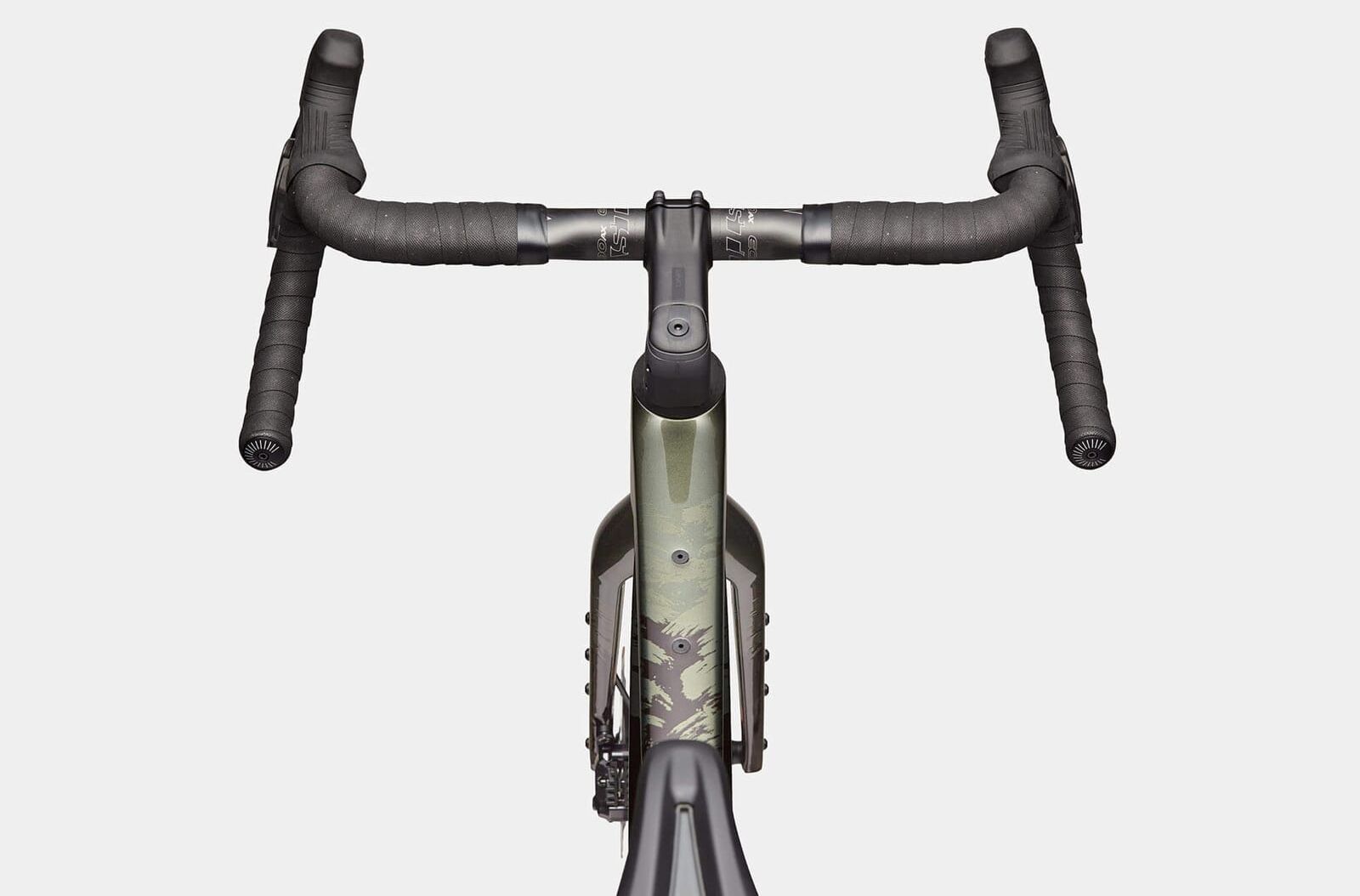

Internal cable routing throughout the frame, combined with Conceal Stem, delivers a tidy, integrated look.
KingPin
Our innovative gravel rear suspension is light, simple, and effective. A thru-axle pivot in the seat tube allows the rear triangle and seatpost of the bike to flex vertically, delivering up to 30mm of bump-smoothing travel.

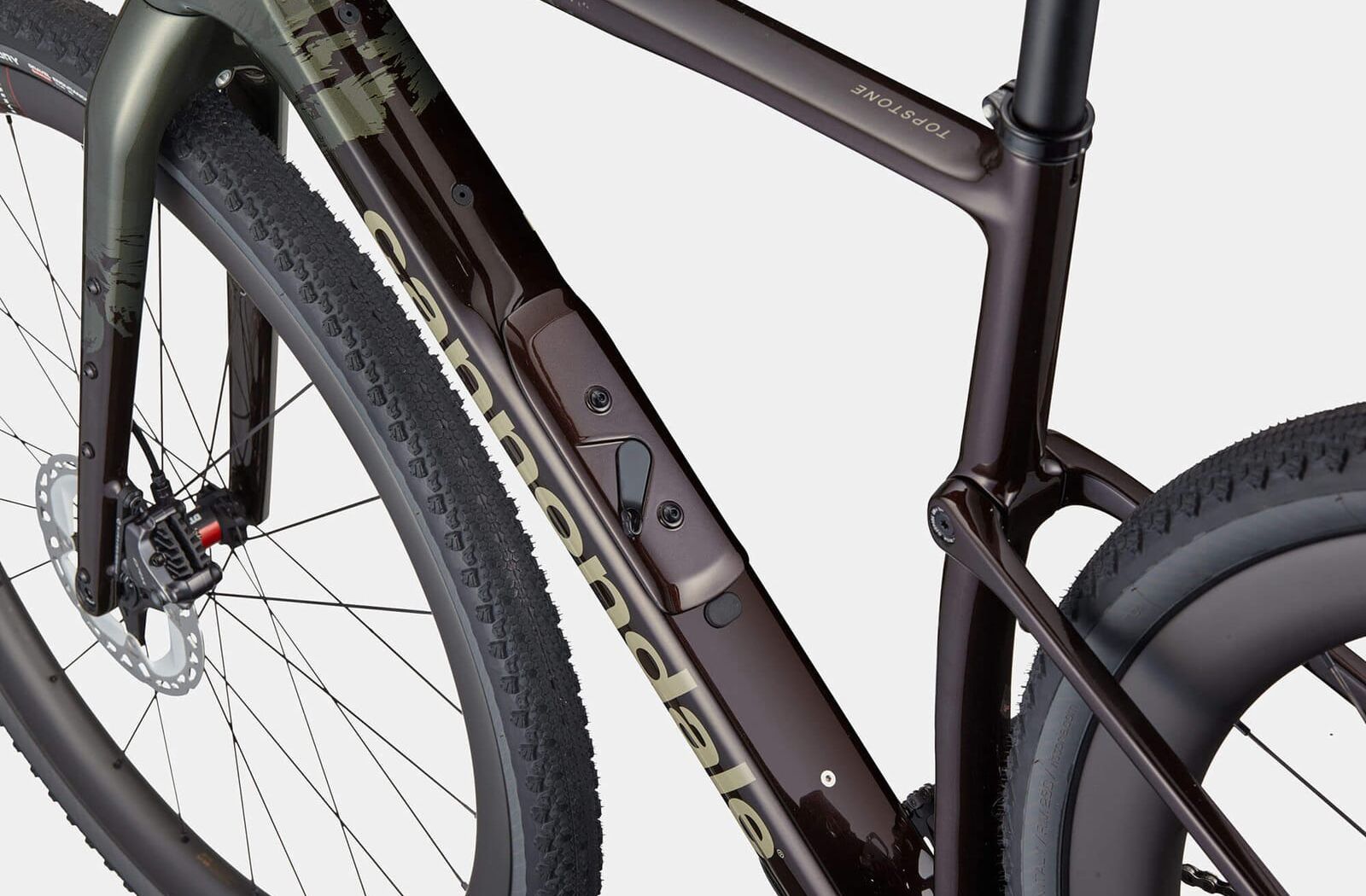

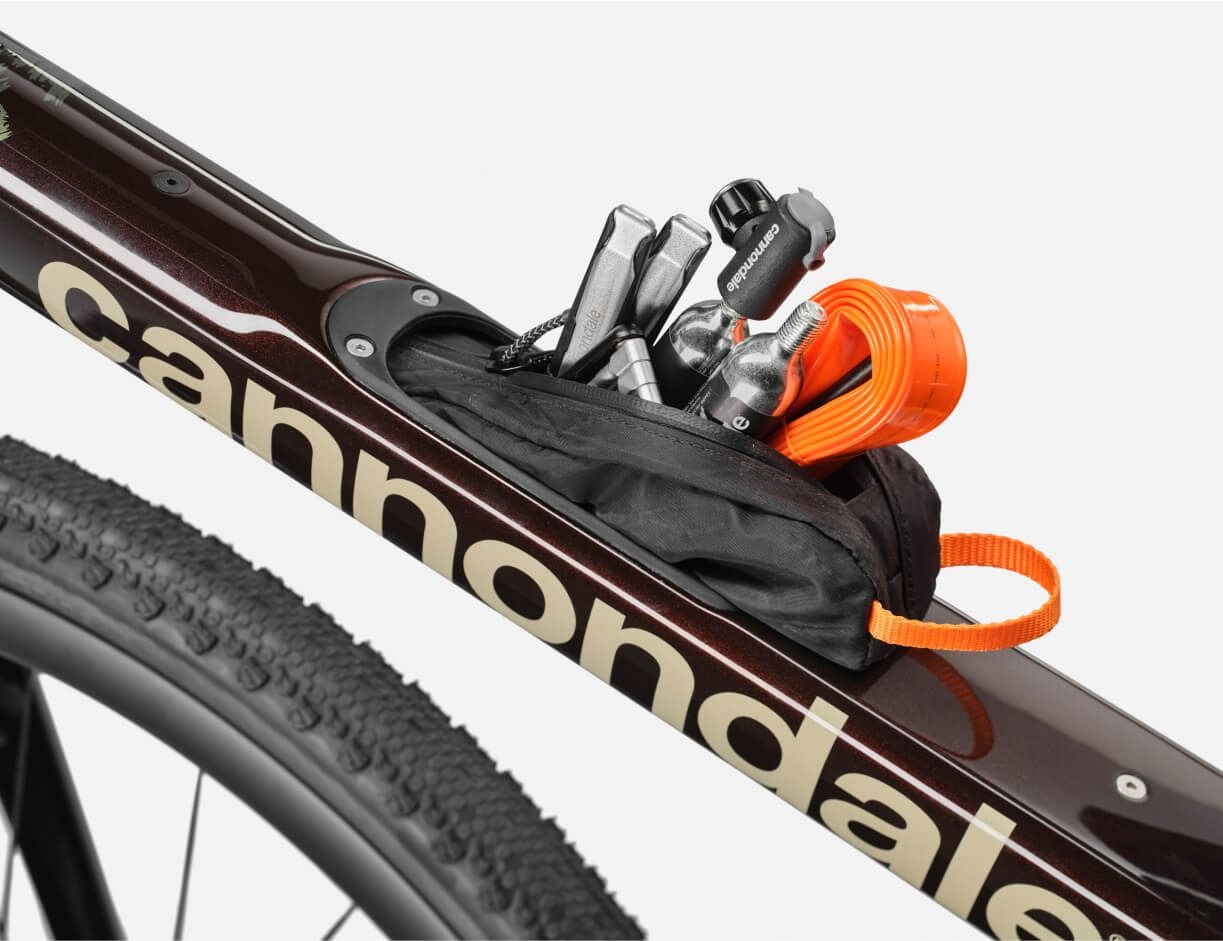

StashPort + StashBag
StashPort is our take on a downtube storage system, accessed beneath the water bottle cage. Every bike includes StashBag, a specially designed bag for your essentials.
Tire Clearance
Topstone Carbon fits tires with a maximum measured width of up to 52mm for the frame and 56mm for the rigid fork. Lefty Olivers tire clearance is optimized for a 700x47mm tire, with height being the primary limiting factor.
Dropper Ready
Built to accept an internally-routed 27.2mm dropper seatpost, which shouldn´t be a surprise on a bike this capable.
Proportional Response
Tuned for the rider, our size-specific construction creates optimal stiffness and compliance for each frame size. So, every rider benefits from the ideal ride feel and comfort of KingPin.

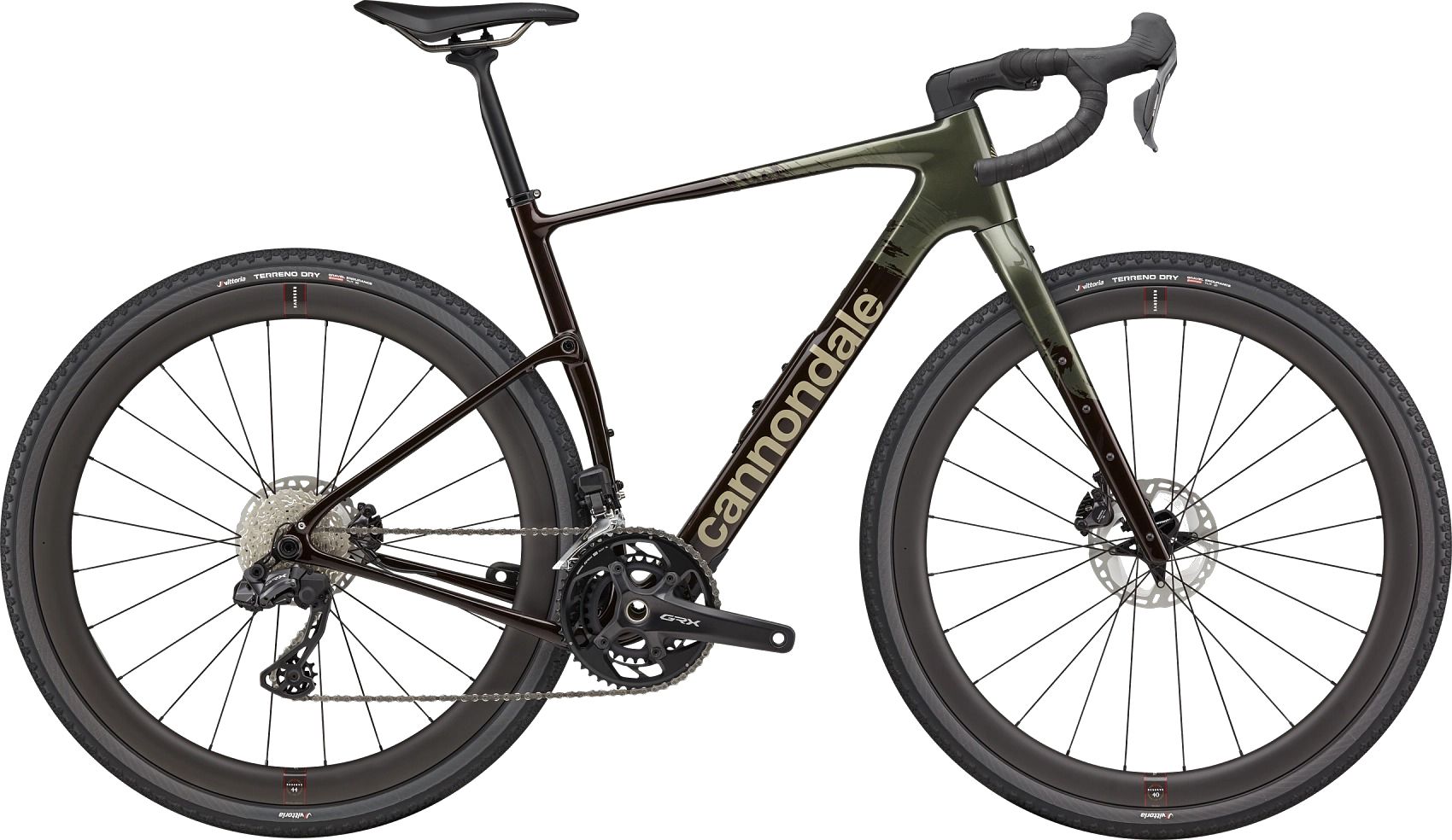

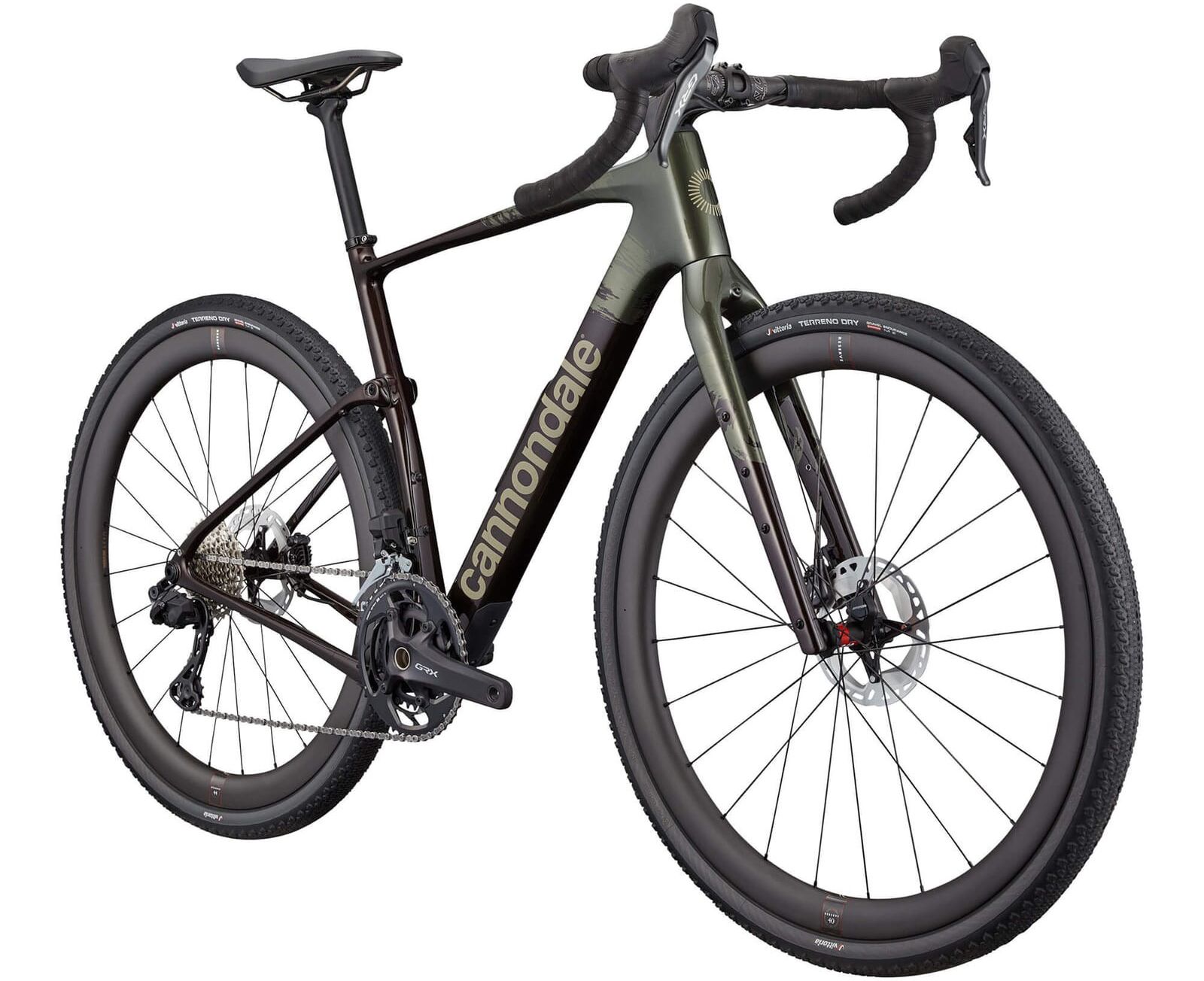

Technical Specifications
Model Code |
C15315U |
FRAMESET |

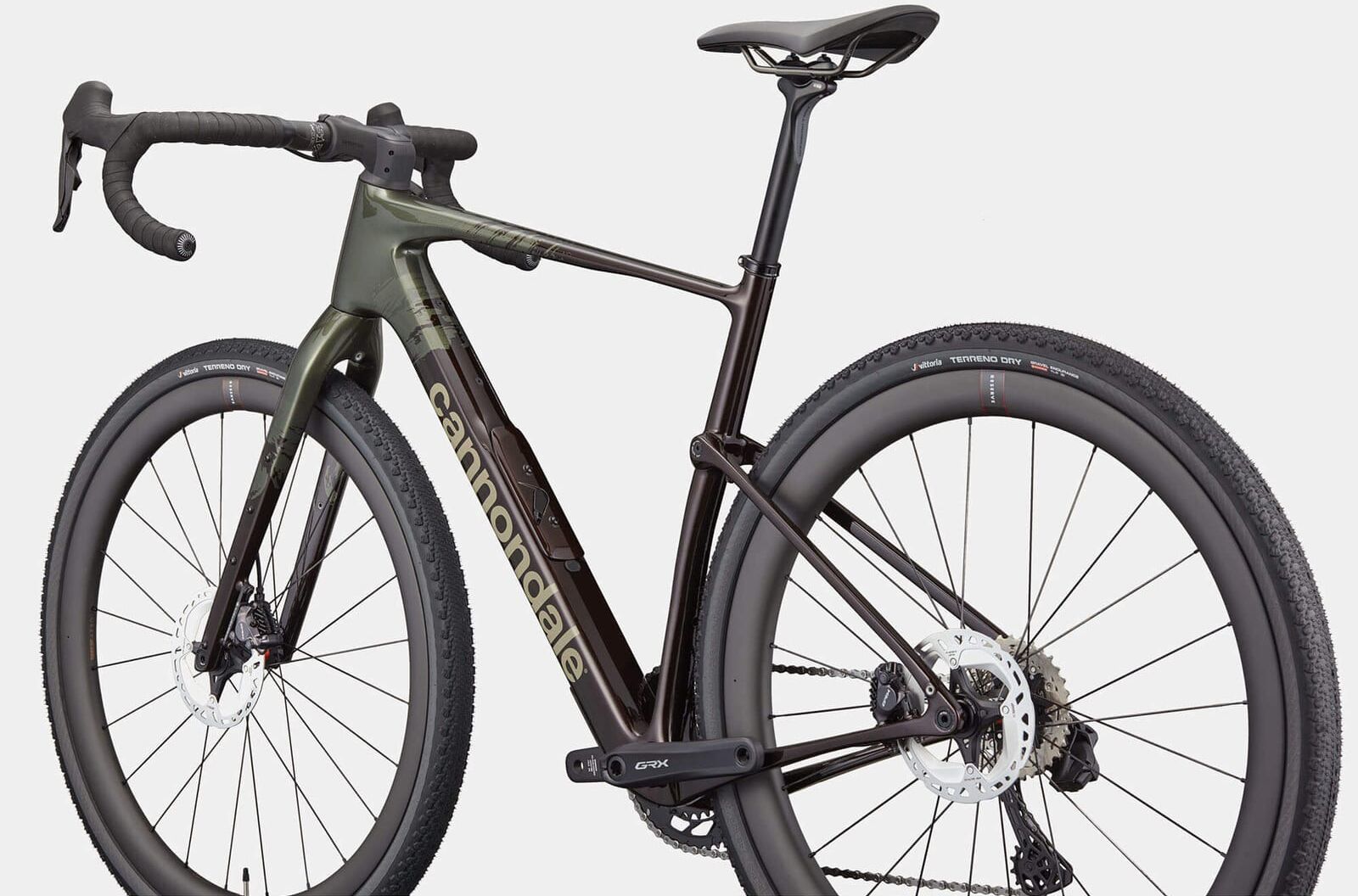

Frame: Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts Headset: Acros IS52/40 ICR |
DRIVETRAIN |

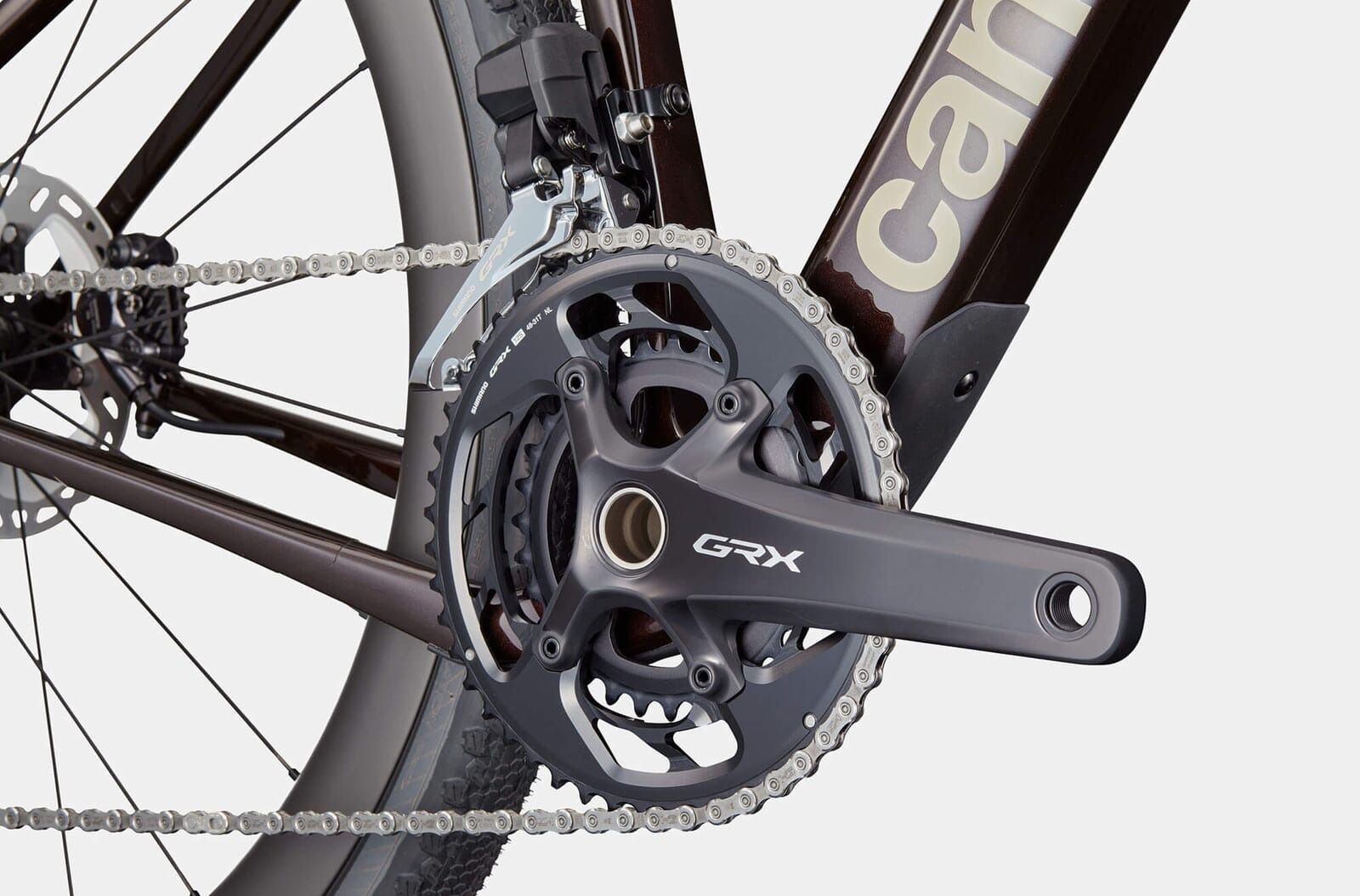

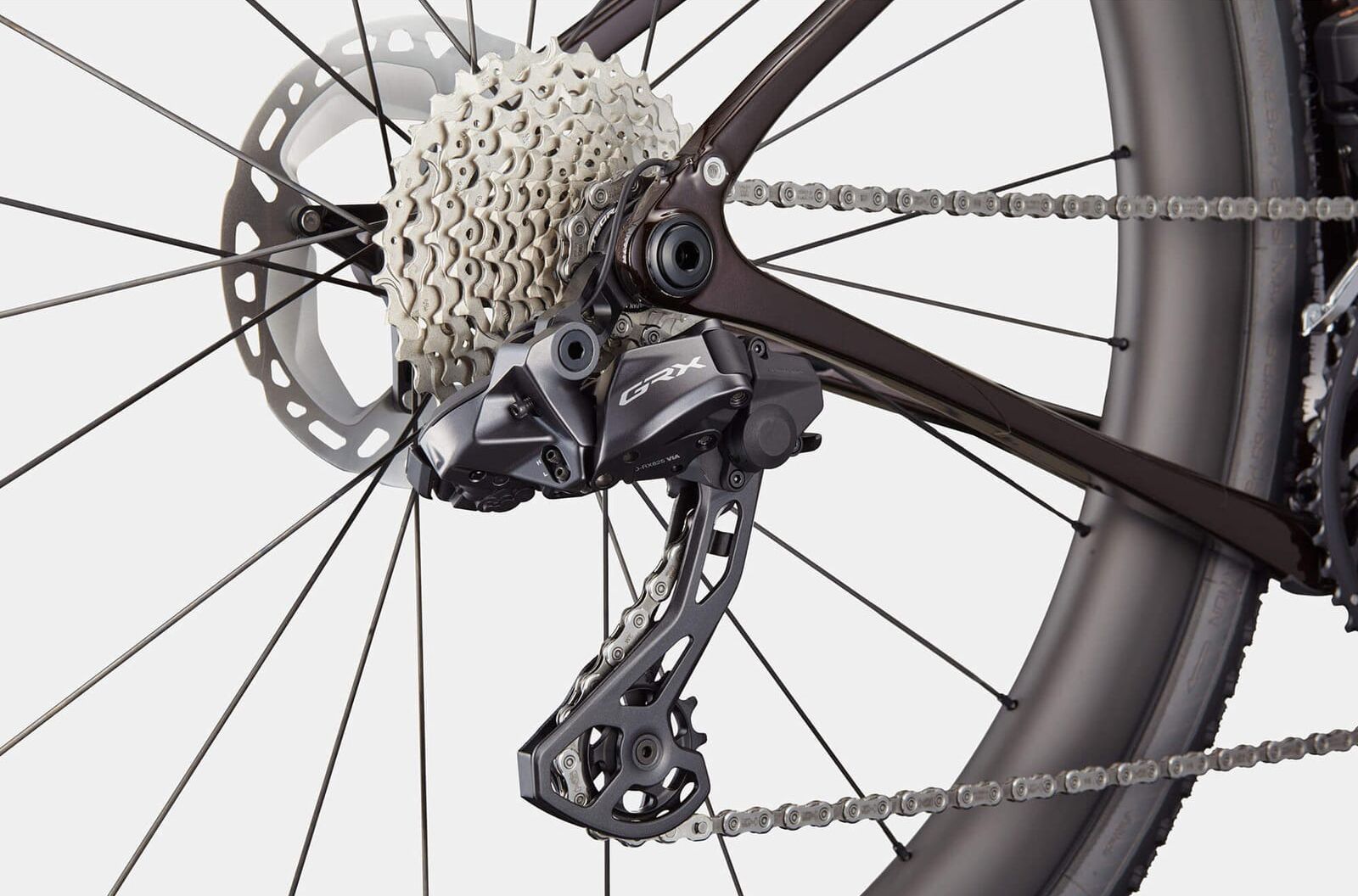

Front Derailleur: Shimano GRX 825, Di2 Rear Derailleur: Shimano GRX 825, Di2, Shadow RD+ Shifters: Shimano GRX 825, Di2, 12-speed Chain: Shimano M8100, 12-speed Crank: Shimano GRX 820, 48/31 Rear Cogs: Shimano Ultegra R8100, 11-34, 12-speed |
BRAKES |
Brakes: Shimano GRX RX820, 160/160mm MT800 centerlock rotors Brake Levers: Shimano GRX 825 hydraulic disc |
WHEELS |
Hubs: (F) DT Swiss 240, 12x100mm centerlock (R) DT Swiss 240, 12x142mm centerlock Rims: Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready Spokes: Sapim CX-Ray Aero straight pull Tires: Vittoria Terreno Dry, 700x45c, tubeless ready |
COMPONENTS |
Handlebar: Easton EC90 AX Carbon Grips: Cannondale KnurlCork, 2.7mm Stem: Cannondale C1 Conceal, Alloy, 31.8, -6° Saddle: Fizik Terra Argo X3 Seatpost: SAVE Carbon, 27.2x350mm (47-58), 400mm (61) |
Extras |
Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, Shimano Di2 charger |
